Open CAD AcademyAdvanced Sheet Metal with SolidCraft

Parts that go into a product

For when you know the basics: an electronics tray and its lid, a 19-inch rack tray, a cable tray and a hopper. Each part adds one new skill, and you check your numbers against SolidCraft's own.

Start with sheet 01 Install SolidCraft

0 of 5 sheets inspected · 5 sheets · SolidCraft 0.27

Sheet 05 · 547.9 × 315.1 mm flat · 3 bends

The sheets

5 sheets
  1. 01 Flanges on FlangesElectronics Tray: Flanges on Flanges 6 min InspectedNext
  2. 02 A Lid That FitsA Lid That Fits: Sizing One Part from Another 6 min InspectedNext
  3. 03 Cut Through Folded WallsCable Tray: One Cut Through Every Wall 6 min InspectedNext
  4. 04 Rack Ears1U Rack Tray: Ears Folded Off the Walls 7 min InspectedNext
  5. 05 HopperSquare Hopper: Bends That Aren't 90° 7 min InspectedNext

The last sheet: Hopper

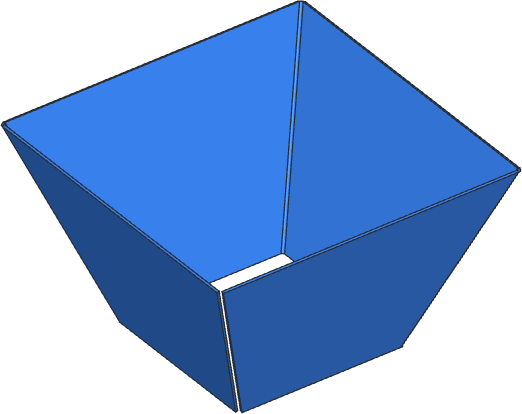

Sheet 05's part, folded, in SolidCraft
547.93 mm315.14 mm

547.9 × 315.1 mm flat, 3 bends, one DXF. You build it from its drawing alone.
