Final Project: A Small Enclosure from Sketch to DXF
In 10 minutes you'll put the whole course together: a small vented enclosure with four walls, round corner reliefs, a hem, a cable hole and a perforation, ending with the DXF and bend table for the shop.
- Part
- Final project: enclosure
- Rule
- Steel 1mm
- Sheet
- t 1 · R 1 · K 0.4
- Time
- 10 min
- Status
- Open
OP 10Watch
Video in productionBuild along with the steps in OP 30 meanwhile.
OP 20Turn the part
Drag to turn, scroll or pinch to zoom. Flat shows the blank before it is bent: the same sheet, the same frame.
The model shows part A, for illustration. Your part has its own sizes: build it from the drawing in OP 30.
OP 30Build it in SolidCraft
Part A of 8. Every learner gets a part with its own sizes, so the values you check below are yours to find.
A new part has new sizes. It clears this sheet's checks and ticked steps; your quiz answers stay.

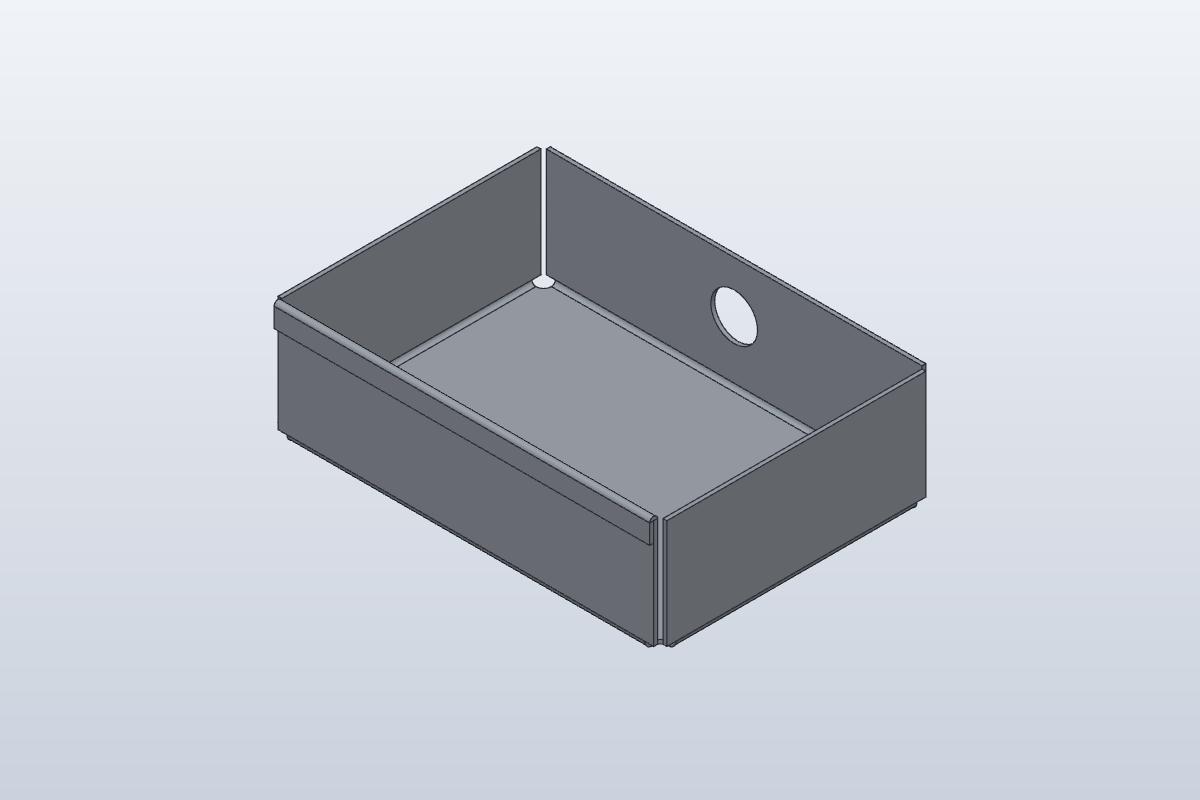

The picture shows part A, for illustration. Build your part from the drawing and the sizes listed here.
- Rule
- Steel 1mm
- Thickness
- 1 mm
- Bend radius
- 1 mm
- K-factor
- 0.4
As typed in this exercise
- Sketch Base on XY: rectangle (0, 0) to (100, 70)
- Flange: height 30, corner relief shape round, corner relief 4 mm
- Hem: length 6
- Sketch Cable on a face of the part: circle Ø12 at (50, 85)
- Perforate: diameter 4 mm, pitch 10 mm
- Physical Material: Steel
Your task
Build this vented enclosure from the drawing alone: its views, its notes and the list under it give every size and setting, and you've used every feature in the lessons before.
- Build the enclosure from the drawing.
- Make the files for the shop: the DXF and the bend table.
- Give it the Physical Material Steel and open its Properties.
Stuck on a feature? Its lesson has it: corners and reliefs in 05, hems in 08, unfold, cut and refold in 11, perforate in 13, the bend table in 14.
What to write down
- Boxes 1 and 2: Both numbers of the flat size (the Flat size row; the third number is the thickness).
- Box 3: The number of bends (the Bends row).
- Box 4: The allowance of the hem's bend: the
allowance_mmcolumn of the bend table, in the row with angle 180. - Boxes 5 and 6: The enclosure's mass in steel, in grams (type the number only), and the height of its center of mass (Z).
Type them below and press Check. If your hem folds inwards instead of outwards, the numbers are the same.
OP 40Inspect
Enter what SolidCraft shows you. Each value is checked against SolidCraft's own result, within the tolerance shown. Nothing you type leaves this page.
Stuck? Compare with the finished part
This opens once you've checked every box at least once: try it yourself first.
Open it in SolidCraft (File › Open) next to yours and compare the timeline, the rule and each feature's sizes: the first one that differs is where yours went wrong.
exercise · Steel 1mm · t 1 · R 1 · K 0.4 · all dimensions in mm, from the blank's left and bottom edgesFlat blank 156.398 × 132.676 mm · 5 bends
Perforation: 92 holes Ø4 mm, staggered, pitch 10 mm.
| Bend | Angle | Dir. | R mm | Length mm | Allowance mm |
|---|---|---|---|---|---|
| 1 | 90° | up | 1 | 92 | 2.199 |
| 2 | 90° | up | 1 | 62 | 2.199 |
| 3 | 90° | up | 1 | 92 | 2.199 |
| 4 | 90° | up | 1 | 62 | 2.199 |
| 5 | 180° | down | 0.01 | 96.59 | 1.288 |
